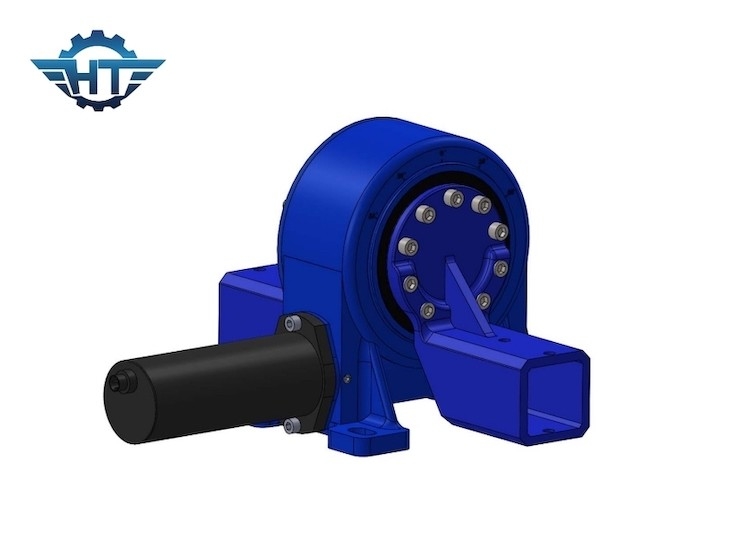

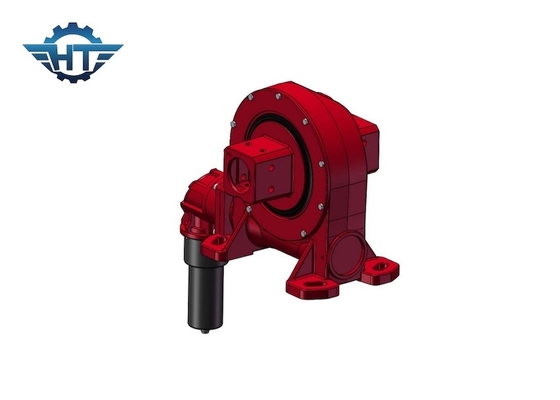

IP66 C5 Coating Vertical Solar Slew Drive Gearbox For Water Proof Solar Tracking System

IP66 C5 Coating Vertical Solar Slew Drive Gearbox For Water Proof Solar Tracking System

  • IP66 C5 Coating Vertical Solar Slew Drive Gearbox For Water Proof Solar Tracking System
  • IP66 C5 Coating Vertical Solar Slew Drive Gearbox For Water Proof Solar Tracking System
IP66 C5 Coating Vertical Solar Slew Drive Gearbox For Water Proof Solar Tracking System
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: HangTuo
Orzecznictwo: CE, ISO9001
Model Number: VE6"
Zapłata:
Minimum Order Quantity: 1 piece
Cena: USD 280~330/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Kontakt
Szczegółowy opis produktu
Model: 6 inch Slewing Gear Ratio: 51:1
Efficiency: 40% Precise: ≤ 0.1
Driver: Electric Motor Type: Vertical Mounted
Application: Solar Tracking System Color: As Requested

IP66 C5 Coating Vertical Solar Slew Drive Gearbox For Water Proof Solar Tracking System



Vertical Solar Slew Drive Description



Slewing drive device is also called rotary reducer, gear reducer, turntable reducer, slewing mechanism and so on. They are all types of reducers that use slewing bearing as the main support, and the auxiliary drive source uses gears or worms as transmission components to realize the functions of deceleration and full-circle rotation. The composition of slewing drive mainly includes gear (or worm), slewing bearing, motor, casing and base. The slewing drive can be basically divided into single worm drive slewing drive, double worm drive slewing drive and special type slewing drive. Single worm slewing drives are generally used in solar photovoltaic systems, and double worm slewing drives are used for applications requiring high torque, such as port machinery, construction machinery, etc.



Data Sheet of VE Slew Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251




Applications



With slewing drives, the availability of existing equipment can be increased to a whole new level with endless possibilities. Here are some applications:

Mining Equipment
Building Slewing Drive
Slewing Drives For Solar Tracking
Agricultural Machinery
Forestry
Automation
Crane Slewing Drive
Ship Deck Equipment
