Dostarczanie innowacyjnych i ekonomicznych napędów obrotowych
 |
| Place of Origin: | China |
| Nazwa handlowa: | HangTuo |
| Orzecznictwo: | CE, ISO9001 |
| Model Number: | VE5" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Cena: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | VE5" | Material: | QT |
|---|---|---|---|
| Function: | Reduce Speed Increase Torque | Orzecznictwo: | ISO, CE |
| Protection: | Enclosed IP66 | Place of origin: | Changzhou, China |
| Warranty: | 5~10 Years | Size: | 3 inch to 25 inch |

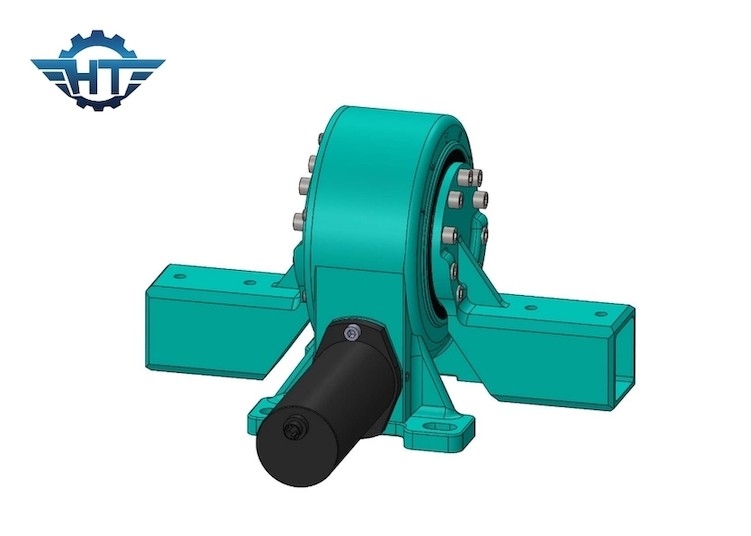

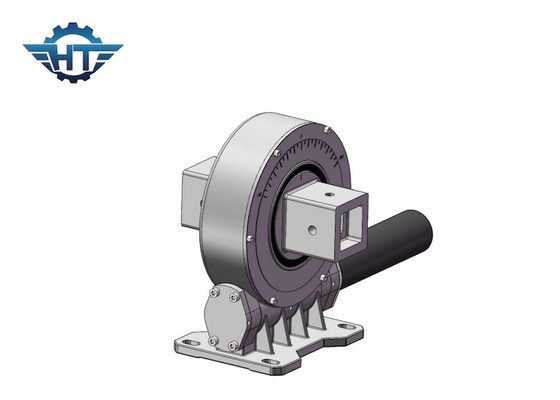

IP66 Sealing And Compact Slewing Drive Reducer For Single Axis Solar Tracking System
Compact Slewing Drive Reducer Description
A slewing drive is a gearbox specially designed to handle high axial, radial and tilt moment loads while providing high rotational output torque. In different applications, slewing drives may also be referred to as worm gear slewing drives, slewing drives, turret bearings, worm drives, rotary units, and so on.
VE Model Performance Parameters
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Precision (degree) | Precision(°) | IP | Self-locking | Weight (kg) |
| 3" | 600 | 1800 | 1500 | 22 | 15 | 31:1 | 40% | ≤0.1 | 66 | Yes | 12kg |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 40% | ≤0.1 | 66 | Yes | 18kg |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 40% | ≤0.1 | 66 | Yes | 32kg |
| 8" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 40% | ≤0.1 | 66 | Yes | 28kg |
| 9" | 4300 | 30800 | 16000 | 60 | 130 | 61:1 | 40% | ≤0.1 | 66 | Yes | 52kg |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 40% | ≤0.1 | 66 | Yes | 65kg |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 40% | ≤0.1 | 66 | Yes | 88 kg |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 40% | ≤0.1 | 66 | Yes | 135 kg |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 40% | ≤0.1 | 66 | Yes | 192 kg |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 40% | ≤0.1 | 66 | Yes | 251 kg |
Advantages
Slewing drives are a powerful and cost-effective alternative to traditional gearbox systems. Its advantages include:
High Power Density: While slewing rings are most commonly used to generate slewing rotation, slewing drive technology utilizes the capacity of its internal slewing ring while introducing built-in drive through a worm gear. Compared with standard slewing ring and pinion, the speed and reduction ratio can be better controlled through the worm gear design.
Space saving: Slewing drives can save a lot of space in the vertical plane, as no additional gearbox is required for speed reduction.
Protecting Internal Components: In harsh environments, enclosed housing slewing drives protect internal components from debris and contamination with different sealing solutions.
Plug and Play: Once the swing drive is in place and connected to a power source, it can be integrated and installed into any system.
Customizable: Slewing drives can be customized to suit their application, such as including multiple drive motors to double torque capacity.
Applications
Slewing drive can be found in many applications including:
Construction Equipment
Renewable Energy Solar Tracker
Wind turbine
Turntables and Welding Positioners
Packaging and Packaging Equipment
assembly line
air platform
vacuum truck
public transport etc.
