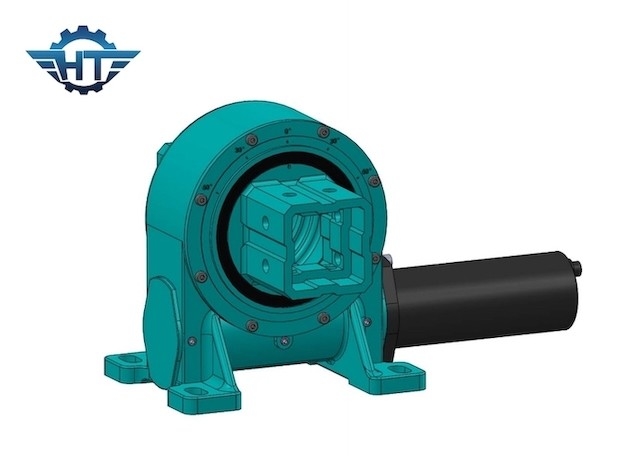

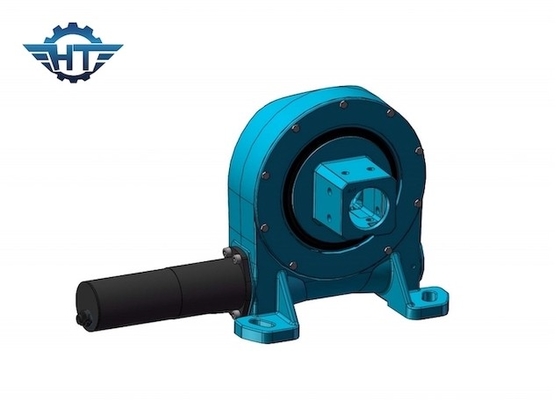

Single Axis Small Slew Drive Gearbox For 24VDC Drived PV Auto Tracking System

Single Axis Small Slew Drive Gearbox For 24VDC Drived PV Auto Tracking System

  • Single Axis Small Slew Drive Gearbox For 24VDC Drived PV Auto Tracking System
  • Single Axis Small Slew Drive Gearbox For 24VDC Drived PV Auto Tracking System
Single Axis Small Slew Drive Gearbox For 24VDC Drived PV Auto Tracking System
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: HangTuo
Orzecznictwo: CE, ISO9001
Model Number: VE8"
Zapłata:
Minimum Order Quantity: 1 piece
Cena: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Kontakt
Szczegółowy opis produktu
Nazwa handlowa: Hangtuo Material: QT
Axis: Single Axis Certificate: ISO9001, CE
Motor: 24V DC Maintenance: Free
Color: As Requested Self-lock: Yes

Single Axis Small Slew Drive Gearbox For 24VDC Drived PV Auto Tracking System



Small Slew Drive Description



The slewing drive is a slewing reduction mechanism with an integrated drive power source. The slewing bearing is used as the main transmission component. This product is also known as rotary reducer and rotary drive device. Compared with traditional rotary products, the rotary drive device is easy to install and maintain, and saves installation space to a greater extent. Mainly used in beam trucks, aerial work vehicles, industrial robots, photovoltaic power generation, wind power generation, engineering mechanical claws and other fields.



VE Type Slewing Drives Performance Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Selection of Slewing Drive



When selecting a suitable slewing drive, we need a brief information about the solar tracking system:

1. The scale of the projects. For utility-scale and large projects usually use horizontal single-axis solar trackers, while dual-axis trackers are mostly used in smaller residential applications.

2. The load on the slewing drives and its gravity distance

3. The output speed
