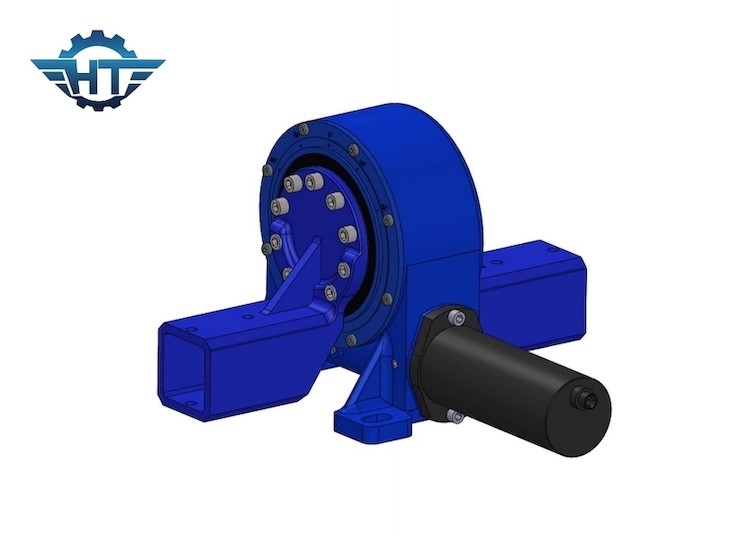

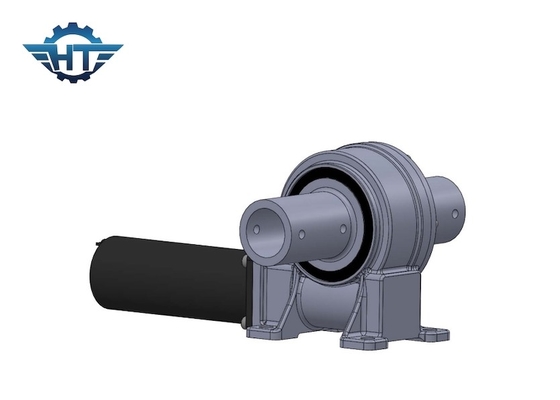

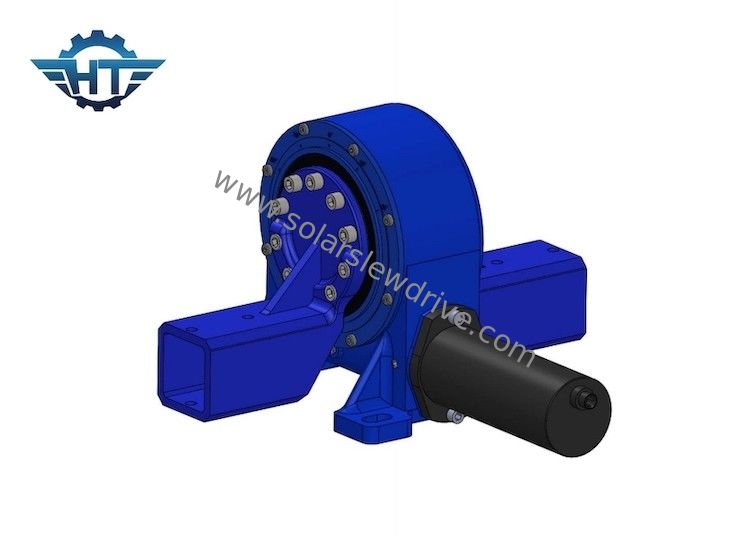

Small Size Heavy Duty Slew Drive For Horizontal Single Axis Solar Tracking System

Small Size Heavy Duty Slew Drive For Horizontal Single Axis Solar Tracking System

  • Small Size Heavy Duty Slew Drive For Horizontal Single Axis Solar Tracking System
  • Small Size Heavy Duty Slew Drive For Horizontal Single Axis Solar Tracking System
Small Size Heavy Duty Slew Drive For Horizontal Single Axis Solar Tracking System
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: HangTuo
Orzecznictwo: CE, ISO9001
Model Number: VE9"
Zapłata:
Minimum Order Quantity: 1 piece
Cena: USD 100~400/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Kontakt
Szczegółowy opis produktu
Model: VE9" Self-lock: Yes
Certificate: ISO9001,CE Warranty: 5~10 years
Material: QT Application: Horizontal Single Axis Solar Tracking System
Testings: Torque test, life duty etc. Accuracy: ≤0.1

Small Size Heavy Duty Slew Drive For Horizontal Single Axis Solar Tracking System​



Heavy Duty Slew Drive Description



The HT Slewing Drive is a gearbox designed to handle radial or axial loads with high rotational torque. In addition, the slewing ring bearing at the heart of the drive enables it to withstand high cantilever or moment loads. A descendant of the "worm" lead screw, rotary drives are found in construction machinery, manufacturing, military equipment, and many other applications where strength and precision are required.



Performace of VE Series Slewing Drives



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Features



From material to finished product, our worm drives are designed, tested and guaranteed for tracking accuracy of efficiency according to customers’special requirements.



Slewing drive can realize unlimited circumferential rotation and speed reduction, and can withstand larger axial force, radial force and overturning force. It enjoys advantages of high accuracy, compact structure and large carrying capacity.



Applications



The physics of slewing drives make them a versatile solution for many applications. In operation, the axial motion of the slewing drive, or motion about its axis, interacts to generate radial torque. This action occurs by meshing the grooves of the horizontal worm with the teeth of the vertical gear. When turning, the axial movement of the worm gear transfers the amplified torque force to the radial gears. The number of threads on the worm and the number of gears interacting will determine the speed ratio of the unit. Slewing drives are best suited for applications where high torque can produce precise positioning and rotational accuracy. This design keeps the unit running smoothly and powerfully with minimal clearance.
