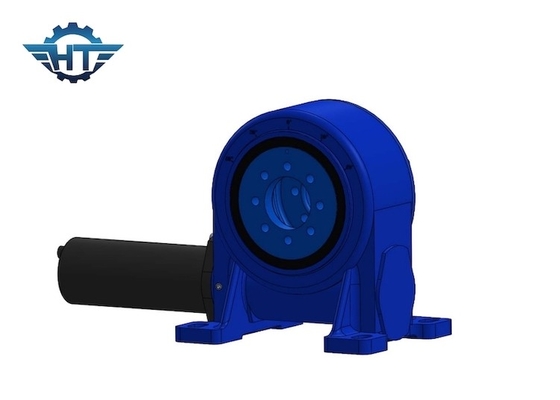

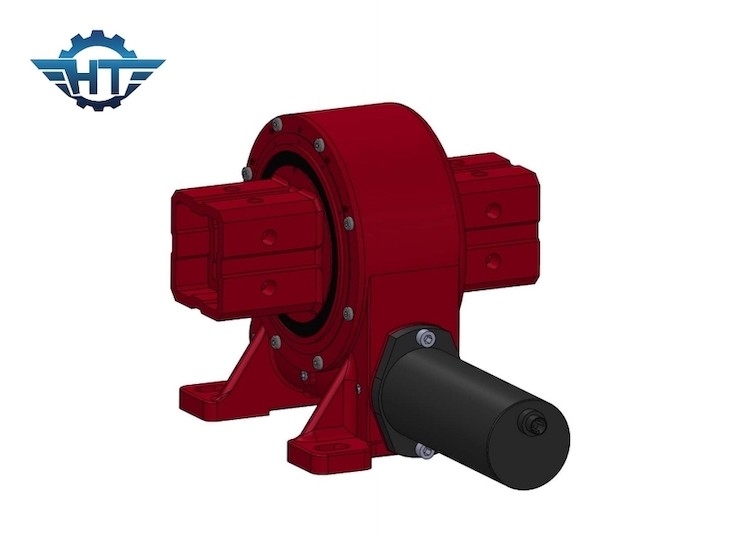

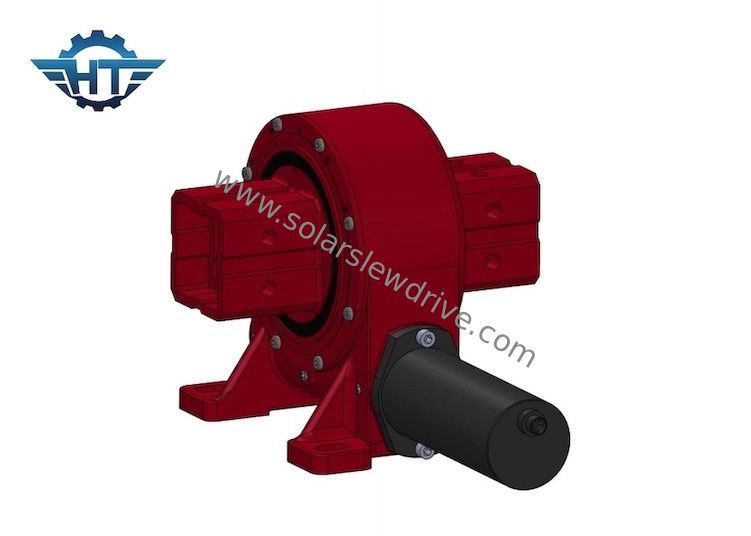

VE9 Worm Gear Slew Drive Reducer For Horizontal Single Axis Solar Tracking System

VE9 Worm Gear Slew Drive Reducer For Horizontal Single Axis Solar Tracking System

  • VE9 Worm Gear Slew Drive Reducer For Horizontal Single Axis Solar Tracking System
  • VE9 Worm Gear Slew Drive Reducer For Horizontal Single Axis Solar Tracking System
VE9 Worm Gear Slew Drive Reducer For Horizontal Single Axis Solar Tracking System
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: HangTuo
Orzecznictwo: CE, ISO9001
Model Number: VE9"
Zapłata:
Minimum Order Quantity: 1 piece
Cena: USD 280~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Kontakt
Szczegółowy opis produktu
Model: 9 Inches Gear Ratio: 61:1
Material: QT Precision: <0.1°
Driver: Electric Motor Type: Single Axis
Application: Solar Plant Color: As Requested

VE9 Single Worm Gear Slew Drive With High Torque For Linkage Solar Tracking System



Description



Slewing drives or slewing ring bearings are rotating modules which are compact rotational units integrated in a cast iron housing that contains a turning ring with a gear. The gear rotates the turning ring with great precision and allows for smooth rotation and maximum effort.



Features



1. Reverse self-locking because of worm gear self-locking characteristics. This feature greatly enhances the stability of the host operating and safety factor.

2. Compared to the traditional swing products, slewing drive gearbox is easy to install, easy to maintain, and saves considerable installation space.



Parameters of VE Slewing Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Advantages



1. Strong overturning moment based on slewing ring

2. Enveloping worm drive inside

3. Large load for using multi tooth contact

4. Static self-locking function

5. Hard stop inside



Applications



Typical slewing drive or slewing ring applications include solar power, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s and automotive lifts.
